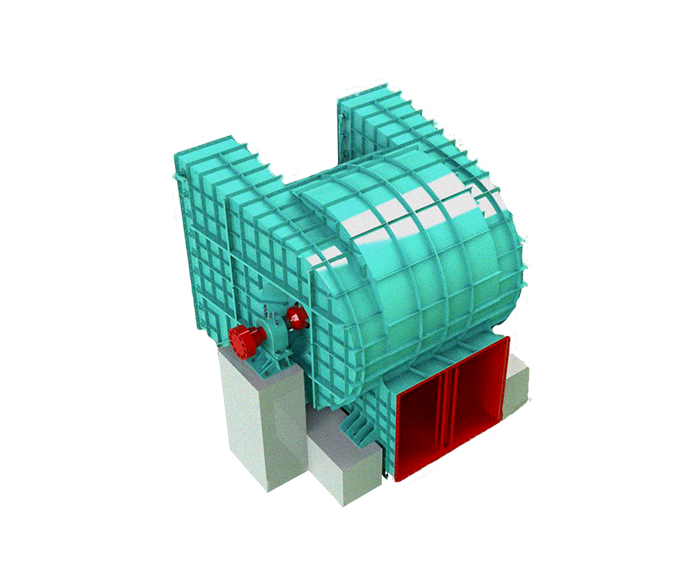

Efficient centrifugal pass, induced draft fan
  • Product name： Efficient centrifugal pass, induced draft fan
  • Product number： DX002

　　Features

　　The company introduced and the development of a variety of high efficiency centrifugal fan models, including 4-73,5-55,6-24,65,66,648,728,7-41, etc., are widely used in Steel, power plants, chemicals, mining, environmental protection and other gas transportation industries. Fan impeller diameter up to 4.0 meters, the use of large hollow shaft mature shaft technology and reliable lubrication. The machine has high efficiency, reliable pneumatic performance, the use of a wide range of features. Suitable temperature: 0 ~ 250 ℃, the transmission medium is air, flue gas or impurity particle gas (dust concentration ≤ 200mg / m3). Fan pneumatic parameters, layout structure, rotation and angle can be designed according to user requirements, production.



　　Technical Parameters

　　1. G/Y4-73 Series

Product specifications

Traffic(m³/h)

Full pressure(Pa)

Highest efficiency(%)

Rotating speed(r/min)

No8D~29.5D

15900~812000

1190~8050

87.1

730~1450

No20F~31.5F（Single, Double suction）

121000~1550000

2140~9100

85.5

730~960



　　2. G/Y5-55 Series

Product specifications

Traffic(m³/h)

Full pressure(Pa)

Highest efficiency(%)

Rotating speed(r/min)

No8D~29.5D

13740~647000

1540~10500

87.0

730~1450

No20F~35.5F（单、双吸）

108000~1460000

2450~12500

83.1

730~960



　　3. G/Y6-24 Series

Product specifications

Traffic(m³/h)

Full pressure(Pa)

Highest efficiency(%)

Rotating speed(r/min)

No8D~26.5D

2410~136000

1740~21300

82.3

960~2900

No22F~39F（单、双吸）

33150~659000

5640~24900

80.0

730~1450



　　4. G/Y6-35 Series

Product specifications

Traffic(m³/h)

Full pressure(Pa)

Highest efficiency(%)

Rotating speed(r/min)

No8D~26.5D

3660~281000

970~20850

85.0

960~1450

No20F~37.5F （单、双吸）

57170~1080000

4920~22760

82.1

730~1450



　　5. G/Y6-42 Series

Product specifications

Traffic(m³/h)

Full pressure(Pa)

Highest efficiency(%)

Rotating speed(r/min)

No8D~30D

6680~443000

750~11650

87.0

730~1450

No20F~35.5F （单、双吸）

79370~1410000

2650~14100

83.5

730~960



　　6. G/Y6-48 Series

Product specifications

Traffic(m³/h)

Full pressure(Pa)

Highest efficiency(%)

Rotating speed(r/min)

No8D~30D

8730~621000

780~10790

86.0

730~1450

No20F~35.5F （单、双吸）

103720~1480000

2805~13600

83.2

730~960



　　7. G/Y7-28 Series

Product specifications

Traffic(m³/h)

Full pressure(Pa)

Highest efficiency(%)

Rotating speed(r/min)

No8D~26.5D

5190~255000

2210~20100

87.1

960~1450

No20F~37.5F （单、双吸）

53650~1050000

6060~28500

83.2

730~1450



　　8. G/Y7-41 Series

Product specifications

Traffic(m³/h)

Full pressure(Pa)

Highest efficiency(%)

Rotating speed(r/min)

No8D~28D

6550~401000

1120~12500

86.5

730~1450

No20F~33.5F （单、双吸）

77820~1050000

4030~13400

83.0

730~960



　　Order to know:
　　The user shall provide the following parameters when ordering the fan: the atmospheric pressure (or elevation) used by the fan, the transmission medium, the medium composition and the percentage of the medium composition (mixed gas), the inlet temperature, the relative humidity, the inlet flow (volume flow or mass flow) Boost, dust content, corrosion and explosion-proof requirements (special gas), and other water, electricity and gas conditions.
Fan rotation, the angle can be designed according to user requirements to meet the needs of users in various working conditions.
